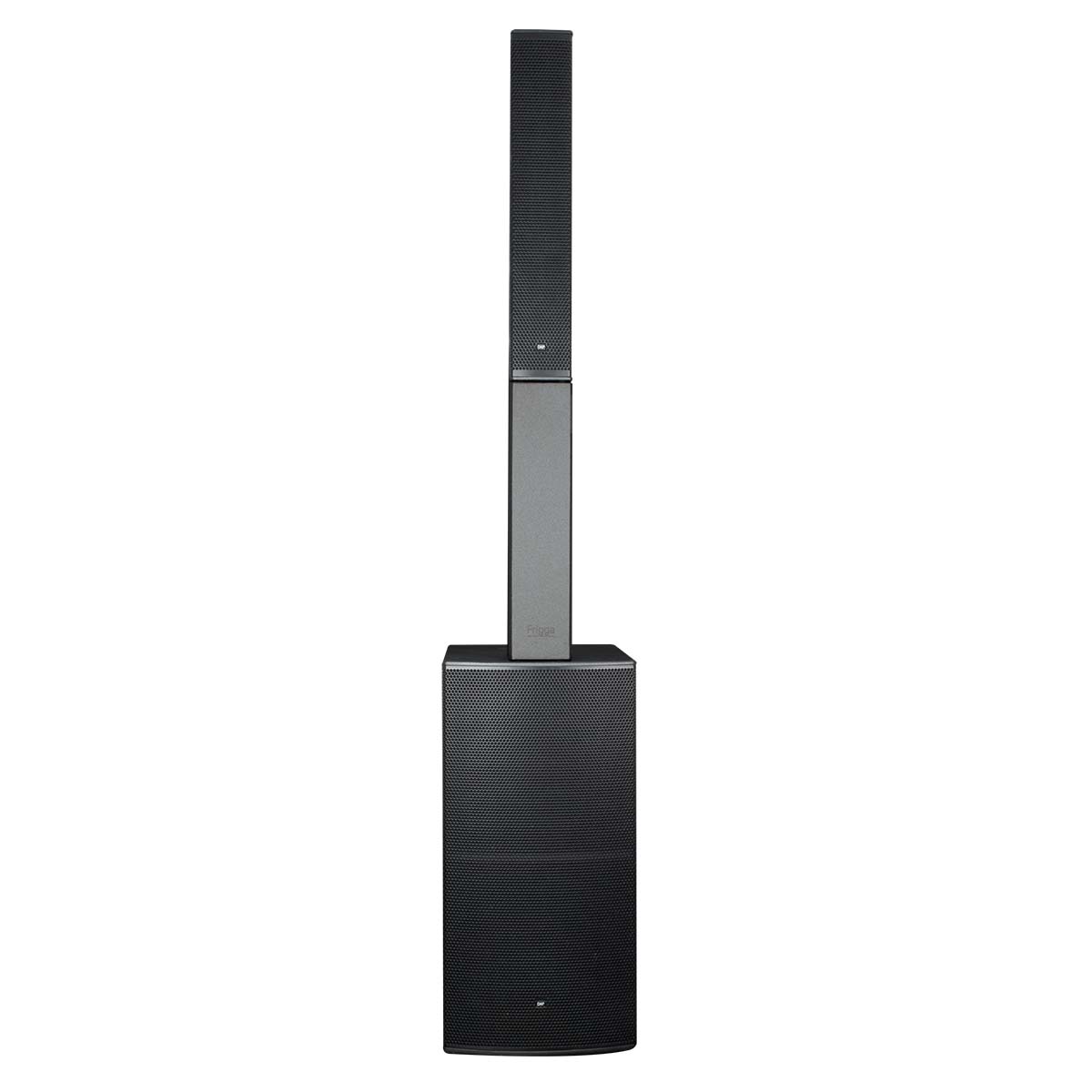

DAP FRIGGA

The DAP Frigga is an active speaker system with a subwoofer and a column speaker, suitable for singer-songwriters, corporate presenters, DJs, nightclubs and bands.

It offers three inputs: XLR microphone input with gain and clip indicator, XLR line input with passthrough and Bluetooth with TWS support. The mixed output groups all signals. The SUB level control and Master level adjust the balance and volume. Status LEDs indicate the amplifier status.

The Frigga features a dual 12” active subwoofer with a built-in amplifier for the column speaker. The column speaker includes six 4” neodymium midrange drivers and a 1.5” neodymium compression driver. The built-in amplifier delivers 1000W RMS (2000W peak) across three channels. Two mounting rods adjust the height for different configurations.

The Frigga comes with cables, mounting rods and spacers and is available in black or white. Note: Microphone and line signals are not transmitted via Bluetooth when using TWS.

Specifications:

Outputs
Power Amplifier RMS Output     1000 W
Power Amplifier Peak Output     2000 W
Top Cabinet High Driver Power     250 W
Top Cabinet Low Driver Power     250 W
Subwoofer Power     500 W
Passive Output Connector     Speaker Connector 4 pole
Main Outputs     1
Main Output Connector     3-pin XLR

Inputs
Mono Inputs     2
Mono Input Connector     3-pin XLR

Audio Specifications

THD Level     < 0.3 %
Signal-to-noise Ratio     > 105 dB
AD/DA Convertor Sample Rate     48 kHz
Amp Technology     Class D /Class H
Speaker System     Active Subwoofer/ Active Bi-amp 2-way
Speaker Sensitivity (1 W/1 m)     96 dB
Max. SPL Subwoofer at 1 m     132 dB
Max. SPL Top Cabinet at 1 m     134 dB
DSP Processor Bitrate     24-bit
Frequency Response Minimum     40 Hz
Frequency Response Maximum     20000 Hz
Woofer Diameter     12 "
Woofer Voice Coil Diameter     2.5 "
Woofer Magnet Type     Ferrite
Satellite Woofer Diameter     4 "
Satellite Woofer Voice Coil Diameter     1 "
Satellite Woofer Magnet Type     Neodymium
Compression Driver Diameter     1 "
Compression Driver Voice Coil     1.8 "
Compression Driver Magnet Type     Ferrite
Subwoofer Dispersion Angle (Horizontal)     360 °
Subwoofer Dispersion Angle (Vertical)     180 °
Satellite Dispersion Angle (Horizontal)     110 °
Satellite Dispersion Angle (Vertical)     30 °

Electrical Specifications and Connections
Power Supply     100-240 V AC 50/60 Hz
Power Consumption     1100 W
Power Connector In     Power Pro Blue
Power Connector Out     Power Pro Grey

Mechanical Specifications
Top Cabinet Height     765 mm
Top Cabinet Width     135 mm
Top Cabinet Depth     200 mm
Subwoofer Height     865 mm
Subwoofer Width     430 mm
Subwoofer Depth     485 mm
Material     Plywood
Top Cabinet Weight     8 kg
Subwoofer Weight     25 kg
IP Rating     IP20 (indoor use only)
Colour     Black or White

Thermal Specifications

Maximum Ambient Temperature     40 °C (104 °F)

Minimum Ambient Temperature     -20 °C (-4 °F)

Included Items

Included Cables     Power Pro Cable, Speakercable
